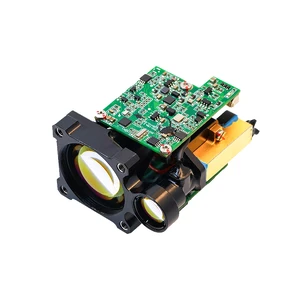

The 1500m Compact Cuboid Laser Ranging Module is an outdoor mid-long distance measurement and small-volume solution product from Eyoung. The size of the laser distance module has been significantly cut down to 25.8×24.6×12.8mm, nearly the size of a coin whose diameter is 24mm. The EY1503C laser distance measurement module is also renowned for its ultra-light weight of 10 grams, making it a choice of excellent cost-benefit ratio for easy integration into various optical systems. Our laser distance measurement module remains outstanding technical properties such as high accuracy, stable ranging performance even in all kinds of harsh working conditions. All these features allow it to be used in rifle scope aiming, targeting and UAV gimbal camera detection and observation. The EY1503C laser rangefinder module is the hottest-selling product among Eyoung's laser ranging family.

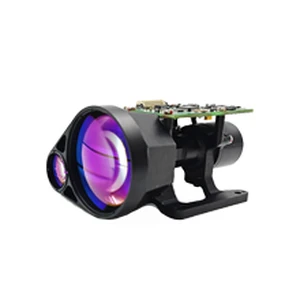

Our 9000m Highly-stable Laser Ranging Module enables highly-stable laser emission and highly accurate range acquisition from low to high reflection standard Nato targets up to 9 kilometers. Adopted with 1535nm laser wavelength, which has good penetration through air, minimal atmospheric absorption, it provides more accurate ranging over longer distance compared to 905nm wavelength. Robust and integrated design, the unit remain resistant to wear and withstand even the most unforgiving weather conditions. Thus it can be effectively used in marine navigation, long-range reconnaissance, security systems and other professional applications requiring highly accurate, long distance measurements.

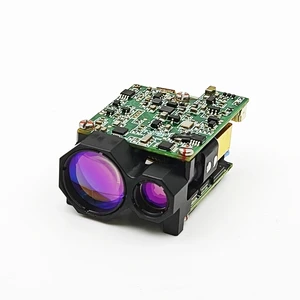

Eyoung's 3000m Stable Eye-safe Laser Rangefinder Module features a medium long range capability of 3000m to vehicles. With good visibility and reflectivity, our eye-safe wavelength rangefinder module can also detect big targets such as large buildings surface, rock hills, from 3000m to 5500m. Based on 1535nm eye-safe laser, the 1535 laser rangefinder module offers highly stable ranging performance even in such a long distance, while adhering to eye-safety standard to ensure user's safety. The physical dimension of this 1535 laser rangefinder module read 50×36.5×24mm (LWH), weighing in at 58g, which is ideal for integration into electro-optical systems, fire control systems and remote weapon stations. It's rated for operating in temperatures between -40℃ and 60℃, showing a strong capacity for temperature resilience.

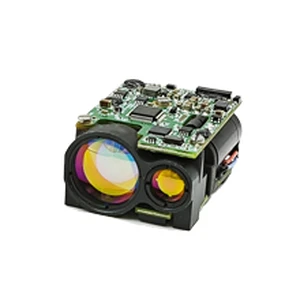

The small laser range finder module is a precision photoelectric product that can calculate the distance information based on the time of flight of the laser by emitting laser at a specific target. The laser range finder realizes communication through TTL communication interface, which has the characteristics of powerful performance and easy operation. The laser wavelength of the range finder is 1535nm, which is eye-safe laser band. The whole module is mainly composed of control and information processing circuit, laser power circuit, laser transmitting and receiving components.

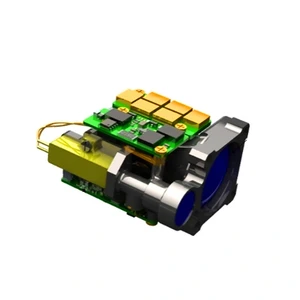

This laser rangefinder module receives a new upgrade as a whole. It offers an optional mechanical mounting interface of front end mounting and side mounting according to customer's platform. The range performance also supports selection of design from 6km to 8km in compliance with the requirement of customer. On the basis of keeping the overall physical characteristics of small size and light weight, its 7 types of ranging frequency from single time ranging to 10Hz ranging, offering customers much more diverse options. With a high adaptability in extremely bad condition, it is much more suitable for integration in high performance electro-optical payloads.

The EY-5001A laser rangefinder module is popular with its 5km range performance on 2.3m×4.6m vehicles, and its small size and light weight for easy integration into UAV gimbal camera.This model has been well sold to Germany and India, for aerospace and aviation application. Our customers speak highly of its excellent performance in long range distance measurement and its affordable price for one sample.
